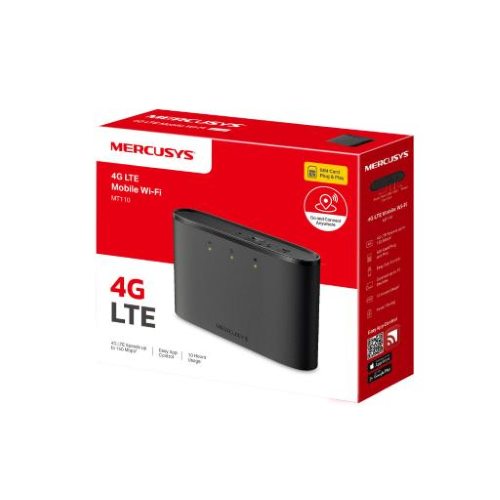

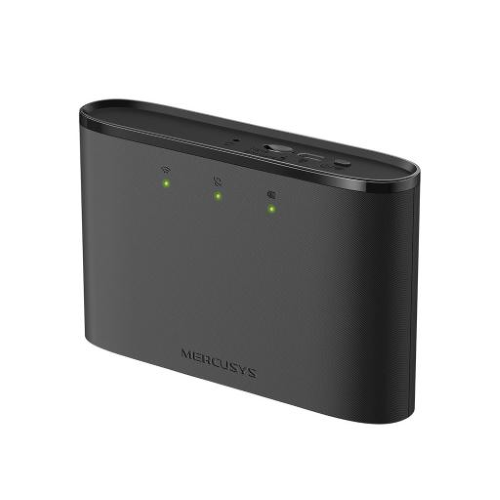

Mercusys MT110 4G LTE Mobile Wi-Fi

Wireless Standards
IEEE 802.11a/b/g/n 2.4 GHz

Frequency
2.4 GHz

Reception Sensitivity
11b 11Mbps: -87.5dBm
11g 54Mbps: -74dBm
11n HT20 MCS7: -71dBm
11n HT40 MCS7: -69dBm

Transmission Power
<20dBm

Wireless Security
Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
DHCP
Server, Client, DHCP Client List
Dimensioni (W X D X H)
111*70*23.8 mm

Interfaces
1 micro USB port for power supply
1 Nano SIM card slot

Button
Power Button, Reset Button

External Power Supply
5V/1A

Tipologia di Antenna
Internal Antennas

Data Rates
4G LTE Speed: DL: 150 Mbps, UL: 50 Mbps

WiFi Speed: 150 Mbps on 2.4 GHz

LED
Wi-Fi LED, Internet LED, Battery LED

Network Type
Support4G/3G network

FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 ?Hz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 ?Hz)
Package Contents
Mobile Wi-Fi MT110
Micro USB Cable
Quick Installation Guide

Environment
Operating Temperature: 0°C 35°C (32°F 95°F)
Storage Temperature: -10°C 40°C (14°F 104°F)
Operating Humidity: 0% 75% non-condensing
Storage Humidity: 0% 65% non-condensing

System Requirements
Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
